QBK KIT

The QBK includes the fuselage kit, the wing kit, the empennage kit, the flight control kit, the fixed landing gear (the retractable one is a option), the aluminium tank kit and the canopy kit. Compared to the basic kit, this also include a installed fuel system, fuel caps and the resin tip kit. A amateur builder requires approximately 200/250 hrs to complete the kit.

Entirely made in Aluminium 2024-T3/6061 -T6, the structure is calculated for a MTOW of 1433 lb and a load factor of +6-3G.

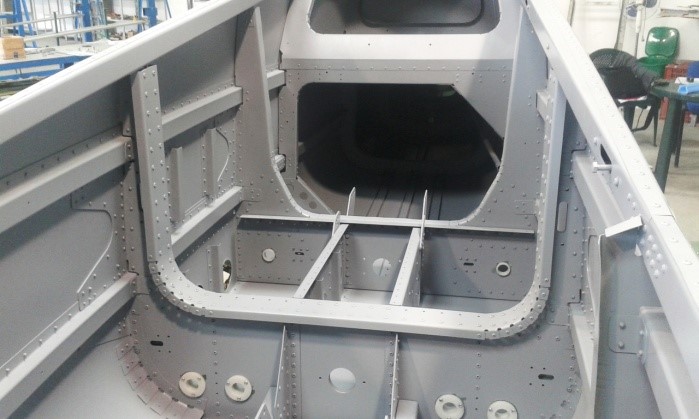

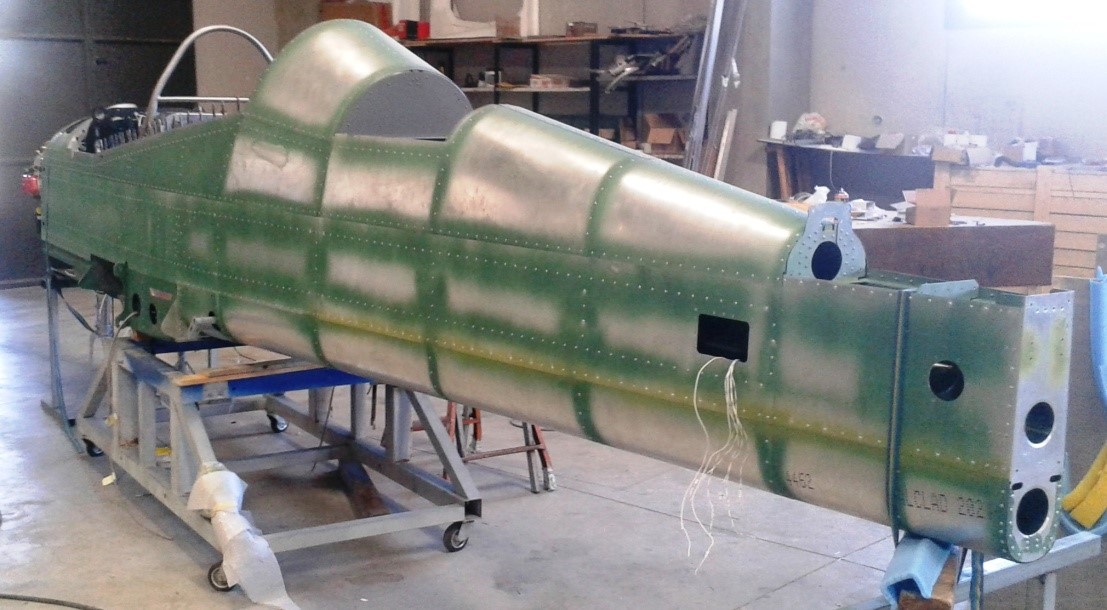

Tucano QBK Fuselage kit

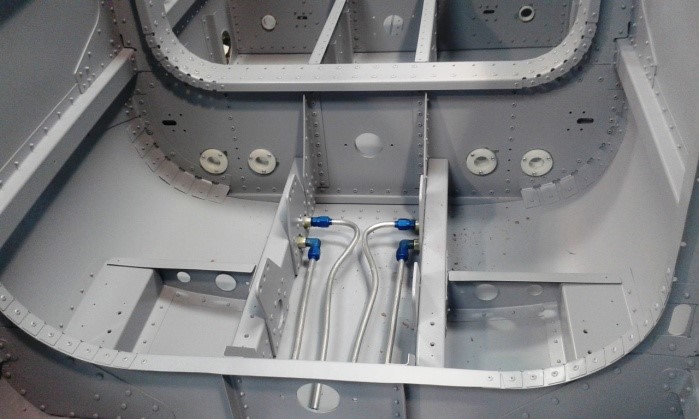

The fuselage kit is entirely closed, the floor and the pedals arrangement are already done by FL. The standard pipe fuel system is inserted. The amateur build has to assembly the controls and the chosen instruments. The roll –bar and the additional baggage compartment are inserted, the internal upholstery has to be completed. The fuselage is also provided with inspection windows which allows the builder a easy access to the internal components.

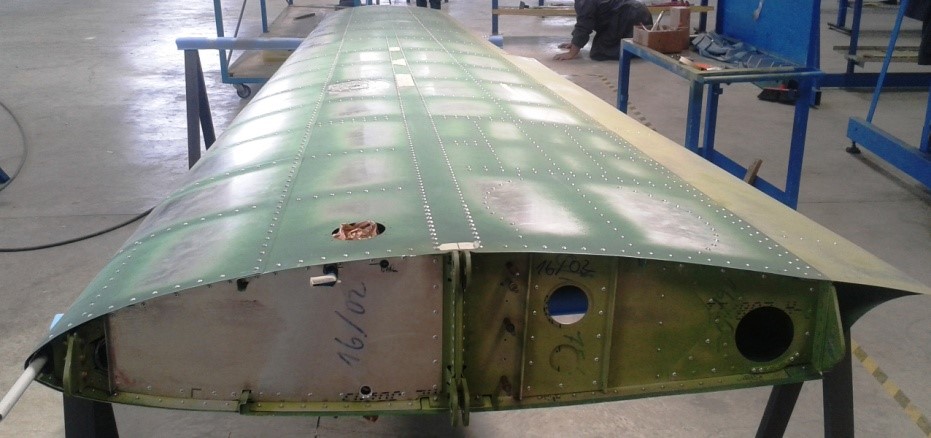

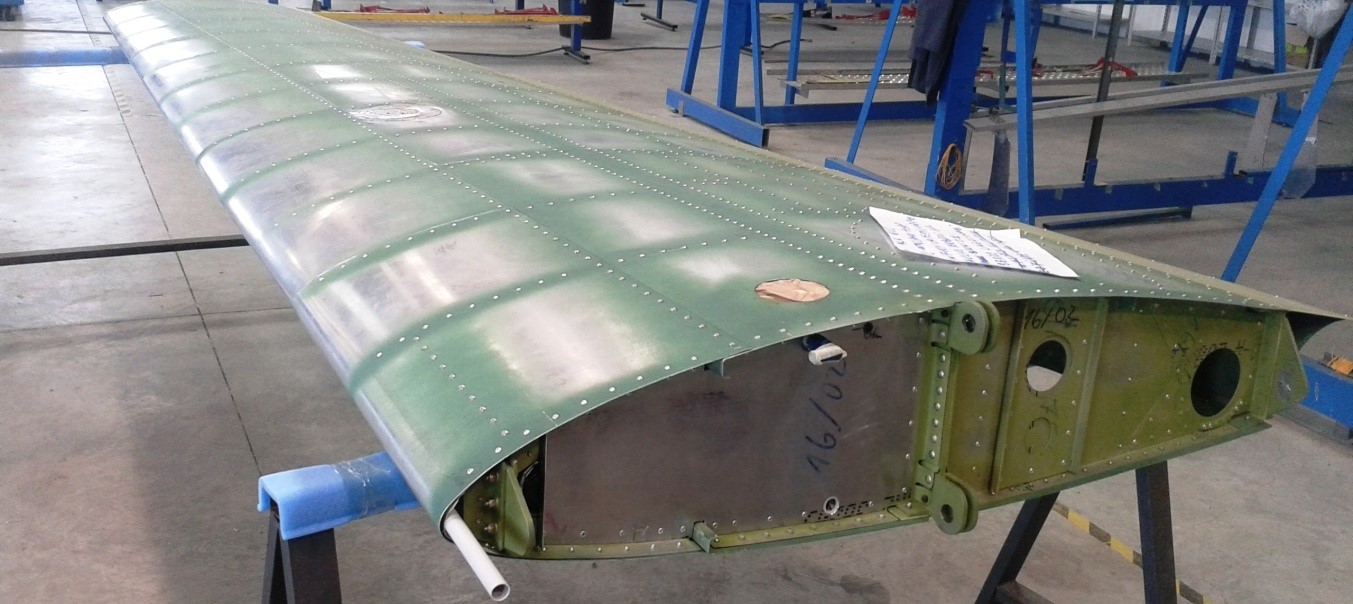

Tucano QBK Half Wing kit

The wings, which are tapered, are closed and the tanks are placed inside. In case of retractable landing gear option, this is assembled by FL too. Assembled are also the fuel return pipe, the pitot pipe, the arrangement for the electric cable, flight control rod, aileron and flap. The amateur build has to assembly only the resin tips, do the final regulation of the controls and the undercarriage.  Our wings are provided with inspection windows too.

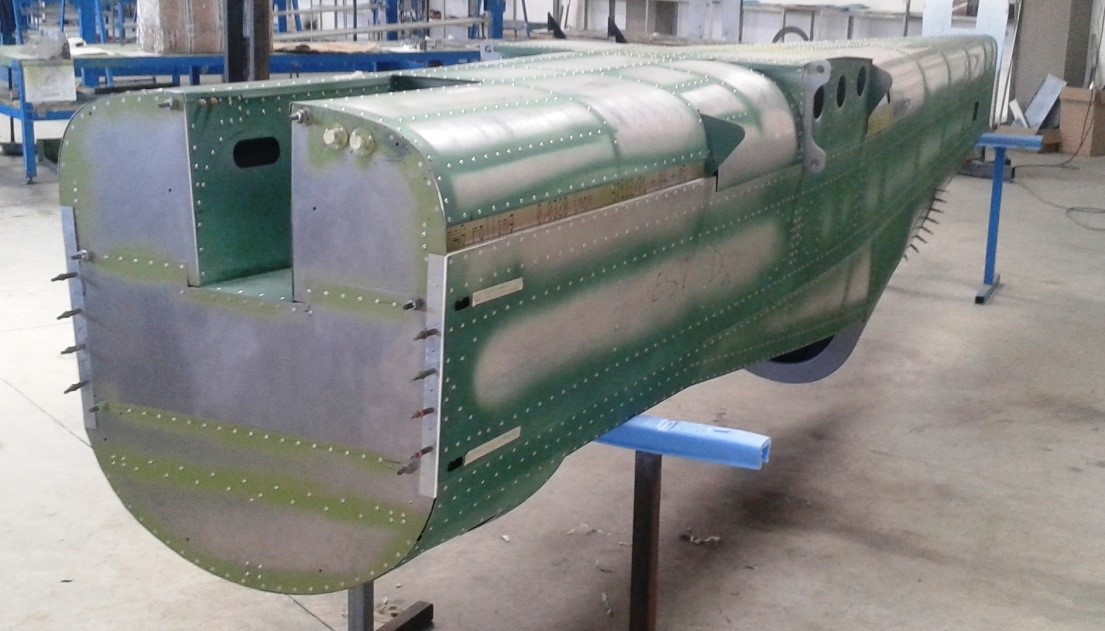

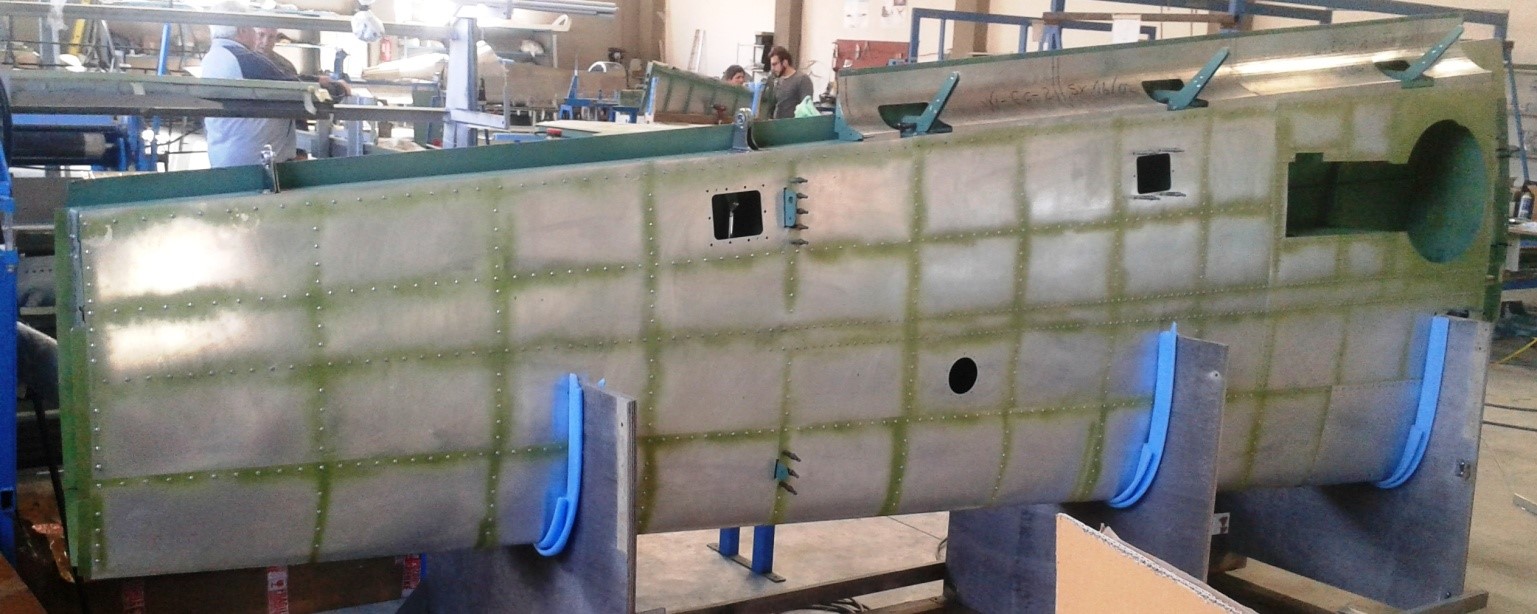

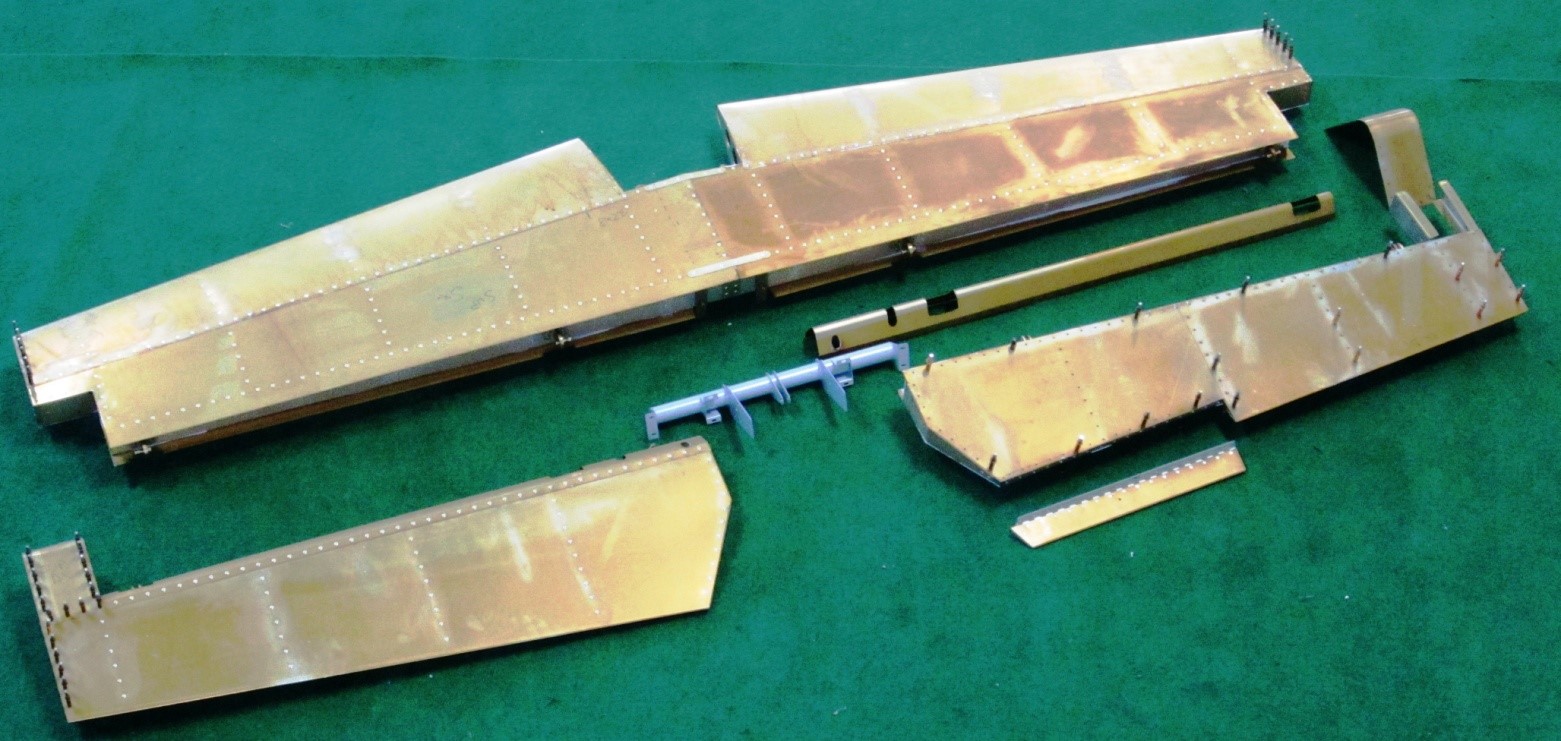

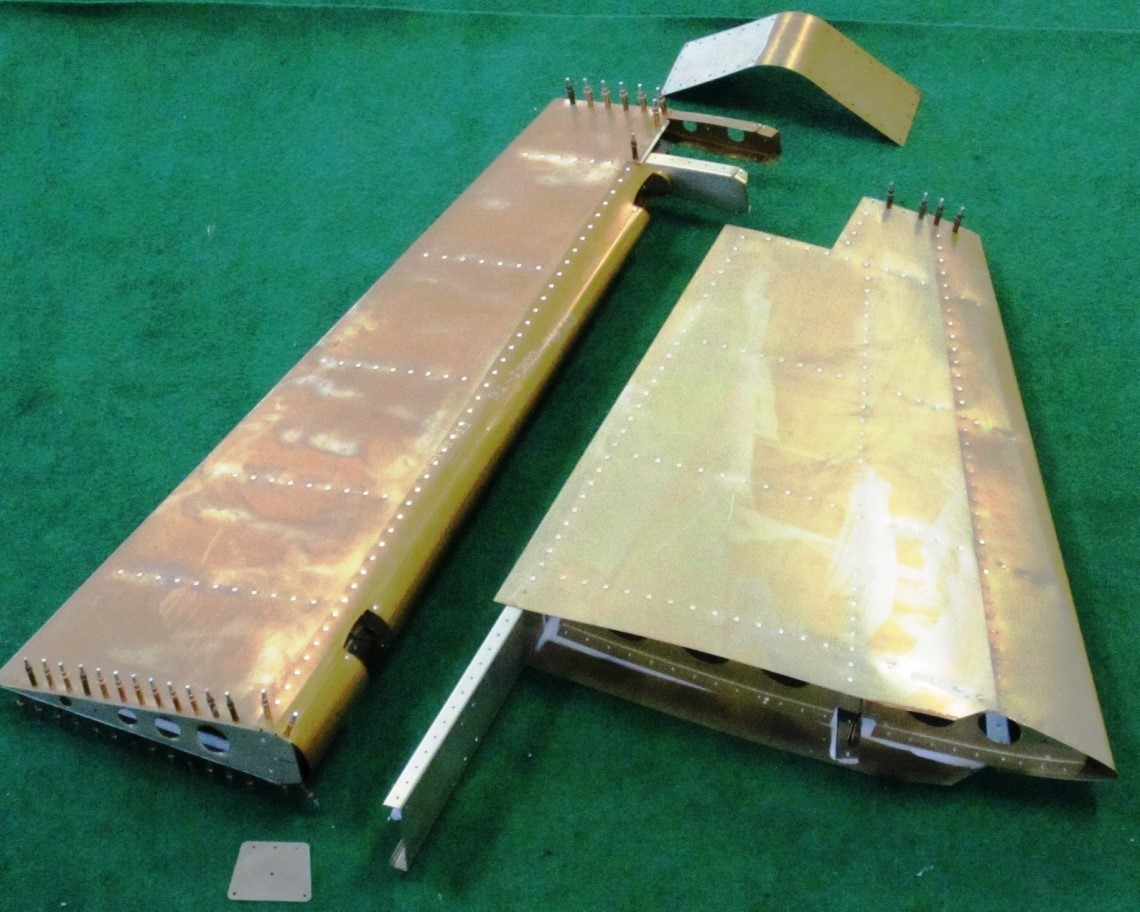

Tucano QBK Empennage kit

The Empennage kit is entirely closed. Hinges, conterbalance and kit trim are already assembled and set to be inserted in the fuselage. The amateur builder has to assembly the resin tip and supply the trim electric motor.

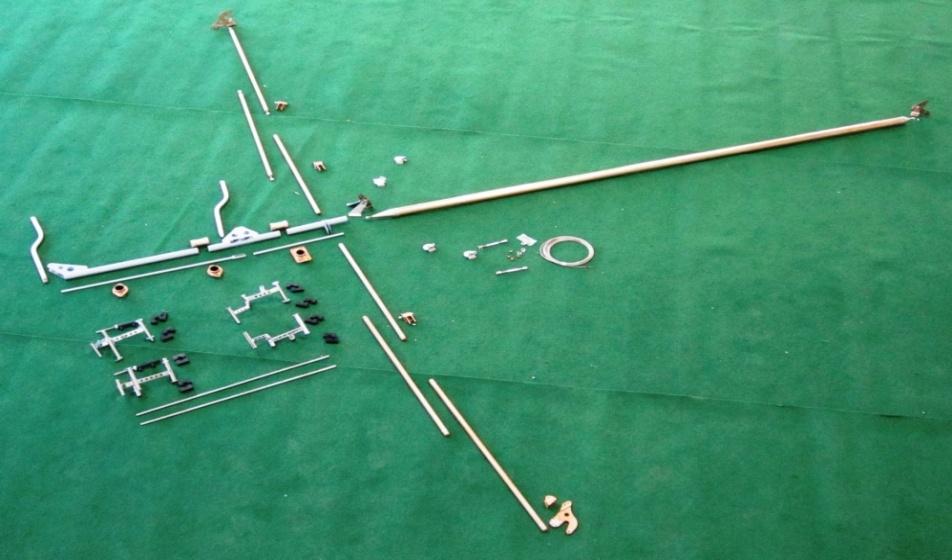

Tucano QBK Flight control

The controls are supplied assembled and to final size. The aileron controls are assembled in the wings. The remaining controls have to be assembled by the amateur builder inside the fuselage.

Tucano QBK Fixed Undercarriage

Either fixed or retractable option  is already assembled in the kit.

The kit includes a leaf spring made of 2024-T3, with 4 supports to fix the structure, two 6″ wheels which are working with manual brakes, a front undercarriage with a 4″ wheel.

ATTENTION: At the time of the order please specify if you would like the fixed or retractable undercarriage option as the fuselage and the wings have to be structured accordingly – also the front undercarriage is suitable for our engine mount.



The Wheel Fairing kit is optional and is not included in the kit. Please select them in “Order a Kit” if you wish to include them.



Optionals are the following:

brakes on pedals

-the parking  brake

Please select them in ” Order a Kit” if you wish to include them



As mentioned above the retractable landing gear is optional. Please select it in “Order a Kit” if you wish this option instead of the fixed landing gear.

The kit includes main and nose landing gear powder coated; mechanics; bushings, hydraulic cylinders, hydraulic power pack (12V); switches and electric components, wheels with hydraulic brakes, emergency hydraulic hand pump kit, hose and fittings.





Tucano QBK Tanks Kit:

The QBK includes already n.2 glued aluminum tanks with relative  accessories already insalled  in the wings. Fuel  caps, are already included in the QBK and placed in the wings together with the tanks.

We offer to our customer the possibility to install  explode safe bladder tanks. If you wish them, instead of the standard tanks, please select them in “Order a Kit”

The explode safe bladder tanks kit includes n.2 bladder tanks (total capacity 25 gallons) complete with accessories to place them in the wings, caps (NEWTON), resin or aluminum covers





The fuel sensors are not included in the kit. If you wish to add them please select 2 quantity in “Order a Kit”.



The Kit Resins is included in the QBK.



Compared to the advanced and basic kit option, the QBK has already included the Resin tip kit and you do not have to order it as an option. They include elevator, stabilizer, fin, rudder and half wing tips.

The Cowling resin kit is optional. If you would like to add it, please select it in “Order a kit”





The Clear Wing Tips are optional. If you would like to add it, please select them in “Order a kit”



The Kit canopy is included in the QBK. The canopy  is manufactured on a tailor made stamp, designed from FL. It provides a great visibility either from the front and the rear seats. The standard colour is clear, but we have grey and blue also as a option.





The Canopy arrives dissasembled. However if you wish FL to assemply it, please select this option in “Order a Kit”



Flying Legend has designed the below engine mount suitable for Rotax Engine, either 912 and 914. It can be also used for the experimental engine of 140 hp.  If you wish to add it to your order, please select it in “Order a Kit.

The engine ring is suitable also for the Rotax engine. Please add it to your order in “Order a Kit” if you choose the Rotax 912. It is already provided by Rotax in case you buy the Rotax 914.

The Anti vibrations are optional. If you wish to add them, please select them in “Order a Kit”

Please find below the three seats options. If you would like to order one of them, please add 2 quantity in “Order a Kit”

Standard seat (made of resin, not covered)

Structural Seat

The structural seats allow the belts to be installed on the seats directly and not on the aircraft structure. They are not covered resin seats  with aluminum structure. This seat is 2,36 inch higher, therefore has to be evaluated for pilots taller than 5,9ft

Standard seats with cover



The Rear brake  (only manual) is optional. If you wish to add it, please select it in “Order a Kit”

The Electric trim is optional.  If you wish to add it, please select it in “Order a Kit”



The Throttle system is optional.  If you wish to add it, please select it in “Order a Kit”

The rear instrument panel  is optional.  If you wish to add it, please select it in “Order a Kit”

Instrument panel is provided plain as we do not know which instruments the customer would like to add. However if the customer already knows which instruments he would like, we can laser cut the holes.



The Step in rod is optional. If you wish to add it, please select it in “Order a Kit”

The Fuel system is already included in the advanced and QBK option. It is optional only for the basic kit.

The Ducts are optional.  If you wish to add them, please select it in “Order a Kit”





The Ogive is optional.  If you wish to add it, please select it in “Order a Kit”
