Basic Kit – 1100 h

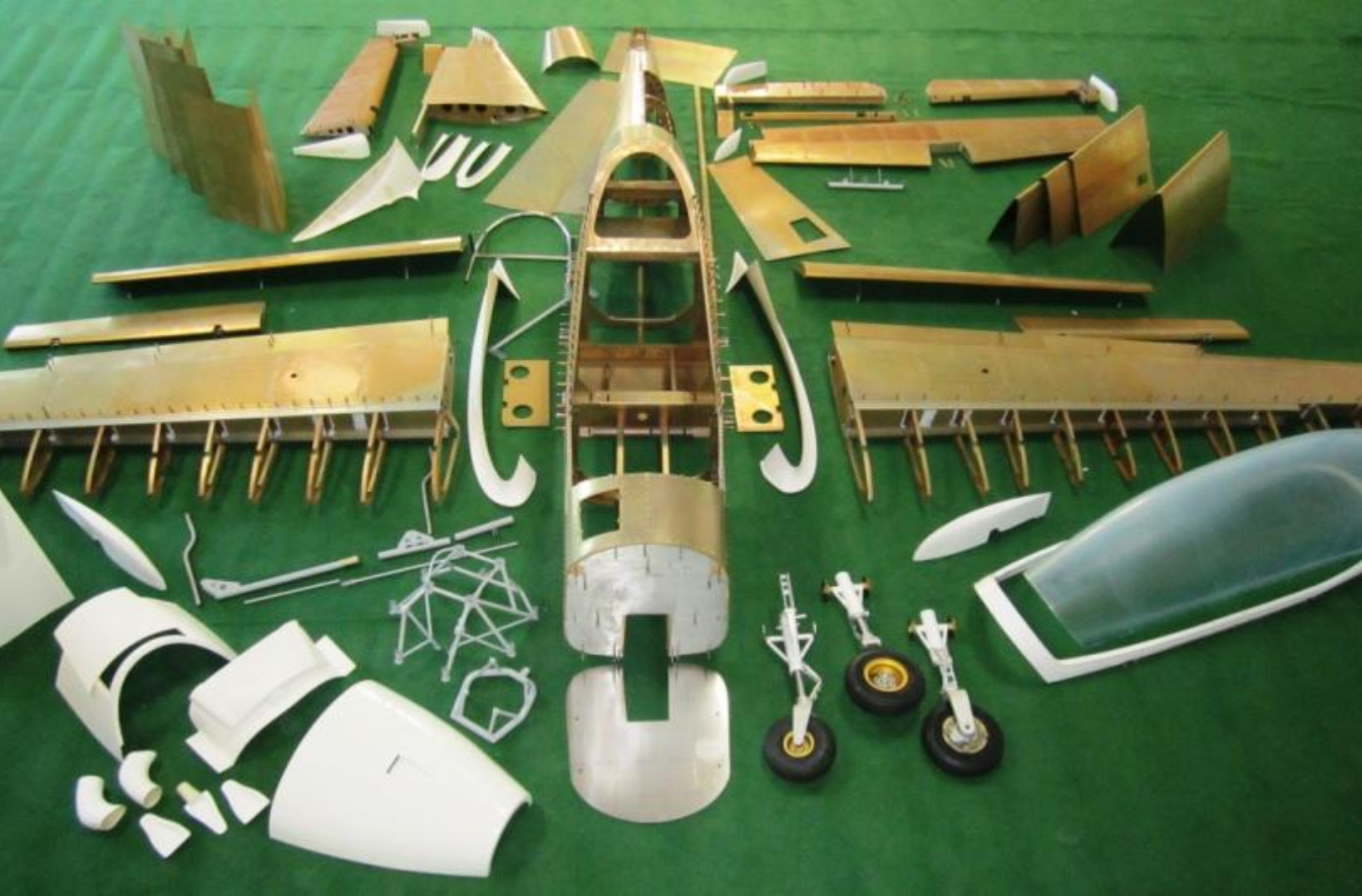

Each kit provided by Flying Legend includes the following: fuselage, wing, empennage, flight control kit, fixed landing gear, the aluminium tanks and the canopy.

Each kit includes also all the hardware parts (bolts, nuts, rivets and so on) required to assembly the aircarft.   A amateur builder requires approximately 1100 hrs to complete the basic kit.

It is also important to mention that you can order a kit in separate components (sub-kits),

EMPENNAGE kit – FUSELAGE kit – WING kit – FINISHING kit –

so you will have all the time to build it at your own pace, step by step, and in a more cost-effective way

The standard kit does not include the retractable gear that has to be selected in the option list

Entirely made in Aluminium 2024-T3/6061 -T6, the structure is calculated for a MTOW of 1433 lb and a load factor of +6/-3G or 1653 lb with a load factor of +4.4/-2.2G

The basic kit is approved by the FAA and is included in the Revised listing of Amateur build Aircraft kits.

What is included in the basic kit?

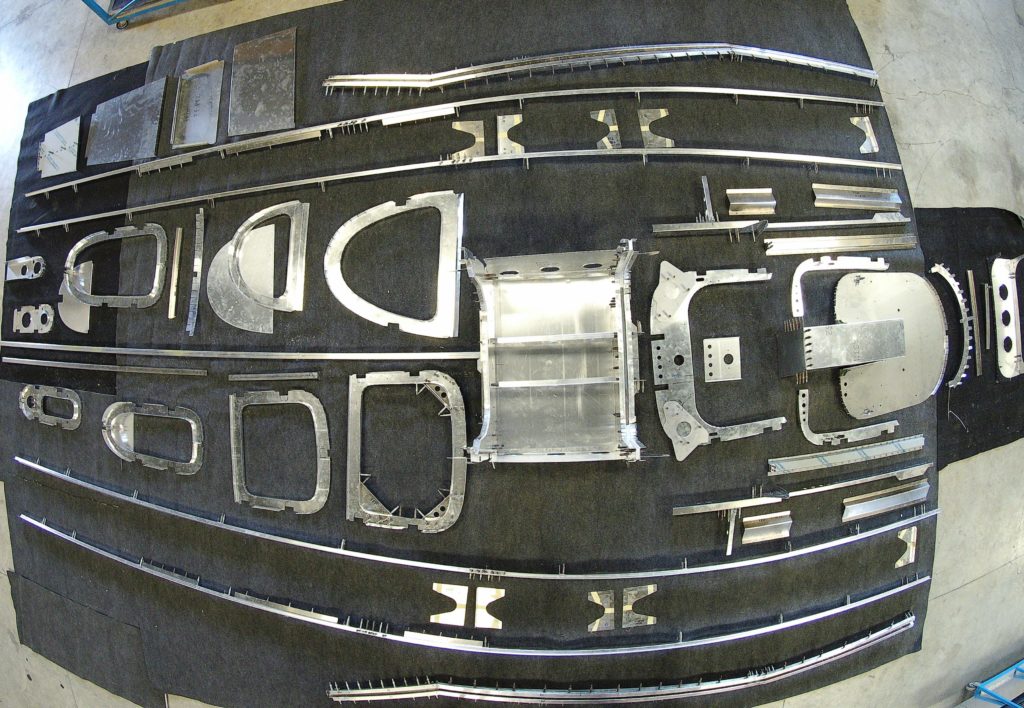

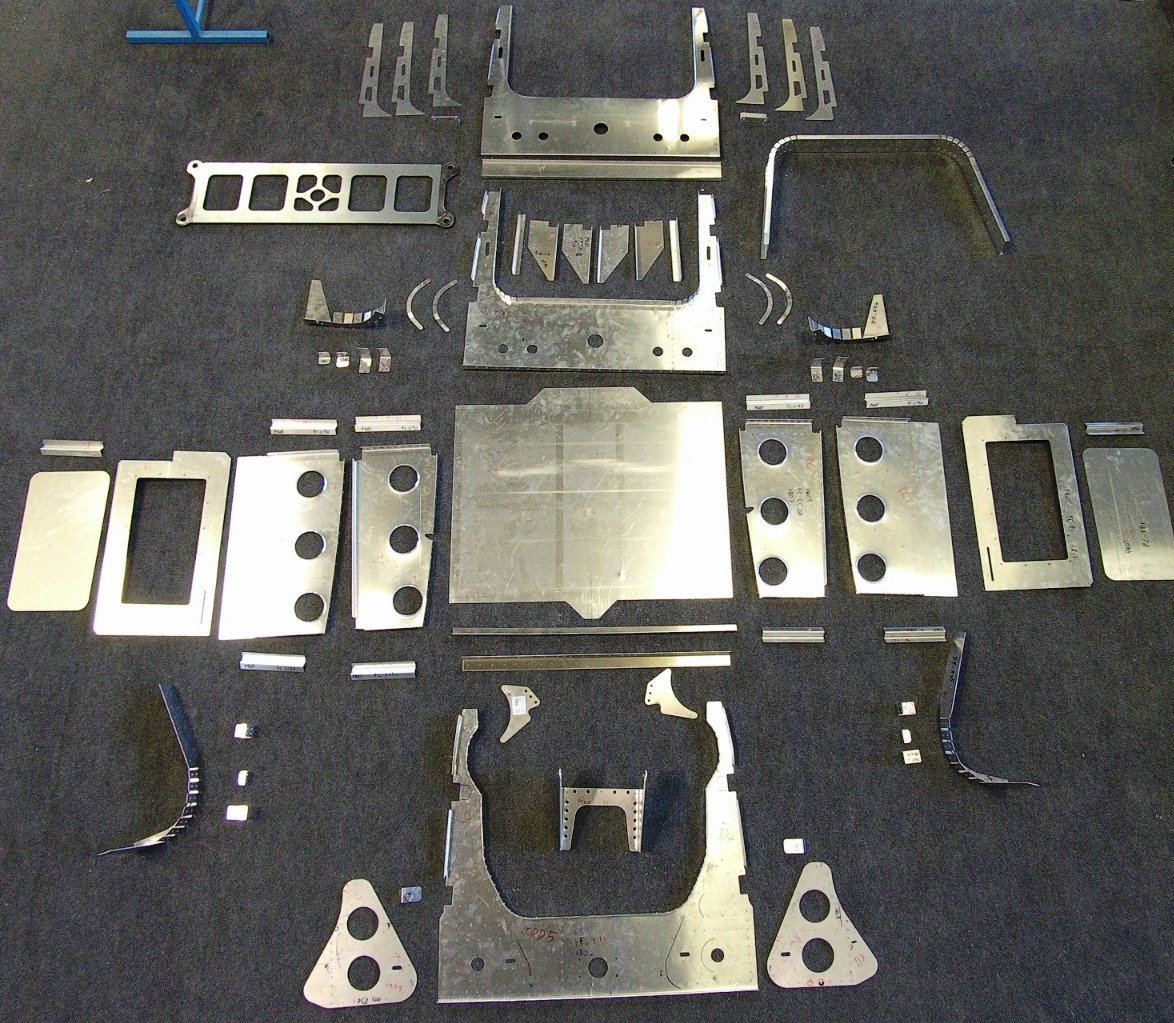

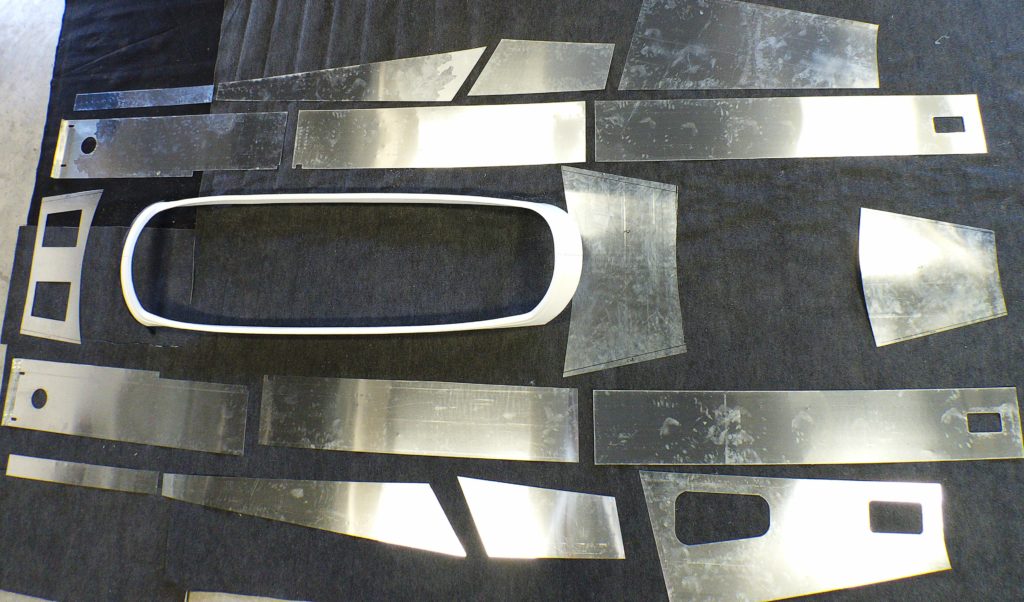

Basic Fuselage

  • Fuselage skins, bulkheads and ribs are press-formed and pre-punched. The builder has to drill the holes to the final size.
  • Engine mount blocks included
  • Fixed main gear legs included
  • Stainless steel roll bar included
  • All nuts, platenuts, washer, bolts, screws, rivets, pop-rivets, tube fittings needed are included.

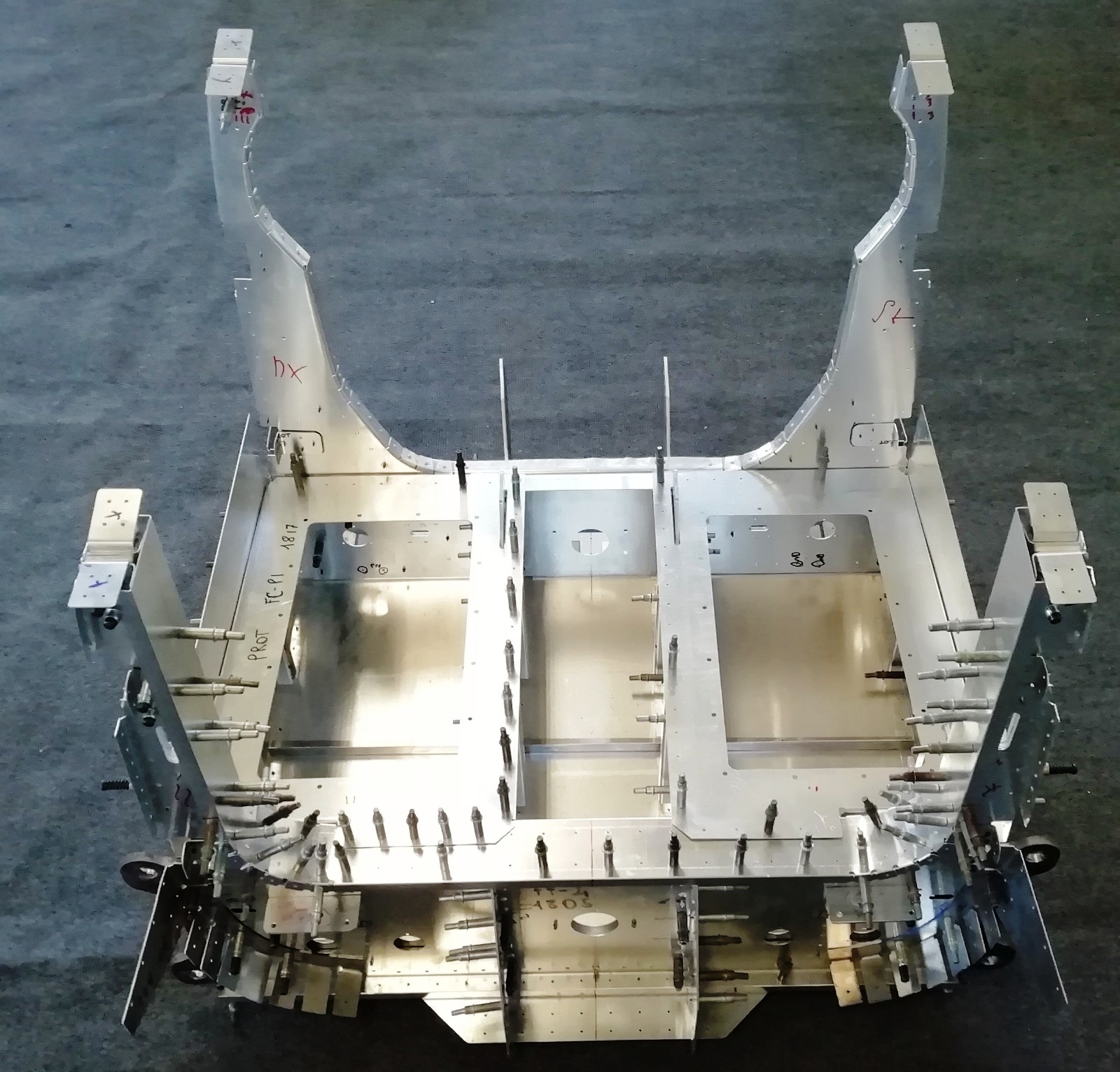

In addition, through our builder assistance program it is possible to have the fuselage central box already assembled, in order to save time on solid riveting and without buying specific tools.

ATTENTION: At the time of the order please specify if you would like the fixed or retractable gear (option), as the fuselage and the wings have to be structured accordingly – also the front gear is suitable for the engine mount provided by us.

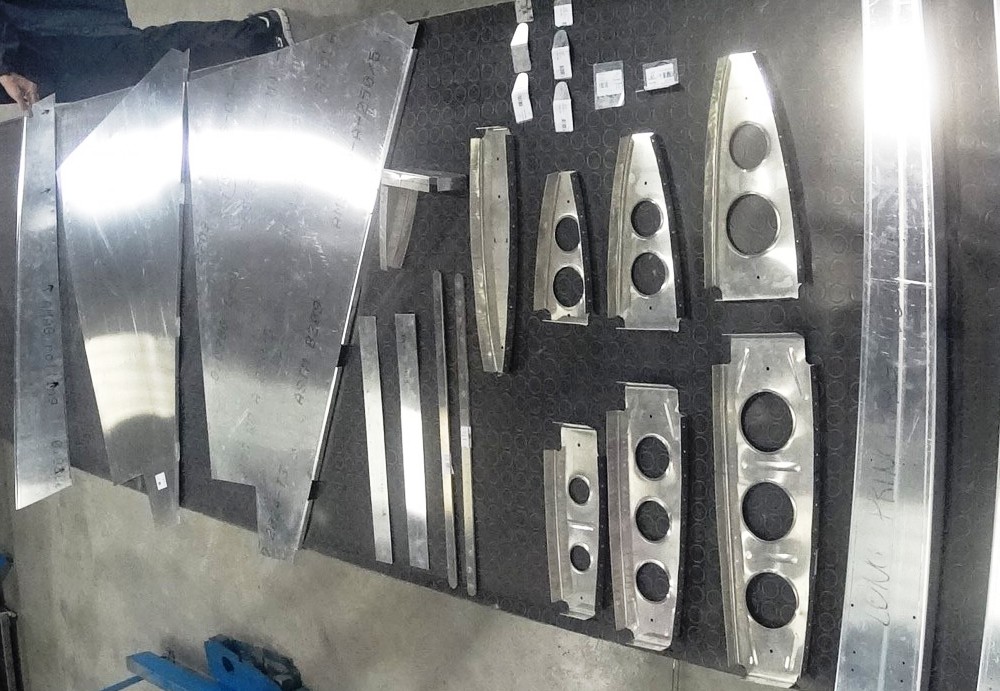

Basic Wing

  • Wing skins and ribs are press-formed and pre-punched. The builder has to drill the holes to the final size.
  • Unassembled fuel tanks included
  • Unassembled flaps and ailerons with all hinges included
  • All nuts, platenuts, washer, bolts, screws, rivets, pop-rivets, tube fittings needed are included.

In addition, through our builder assistance program it is possible to have main spar already assembled, in order to save time on solid riveting and without buying specific tools

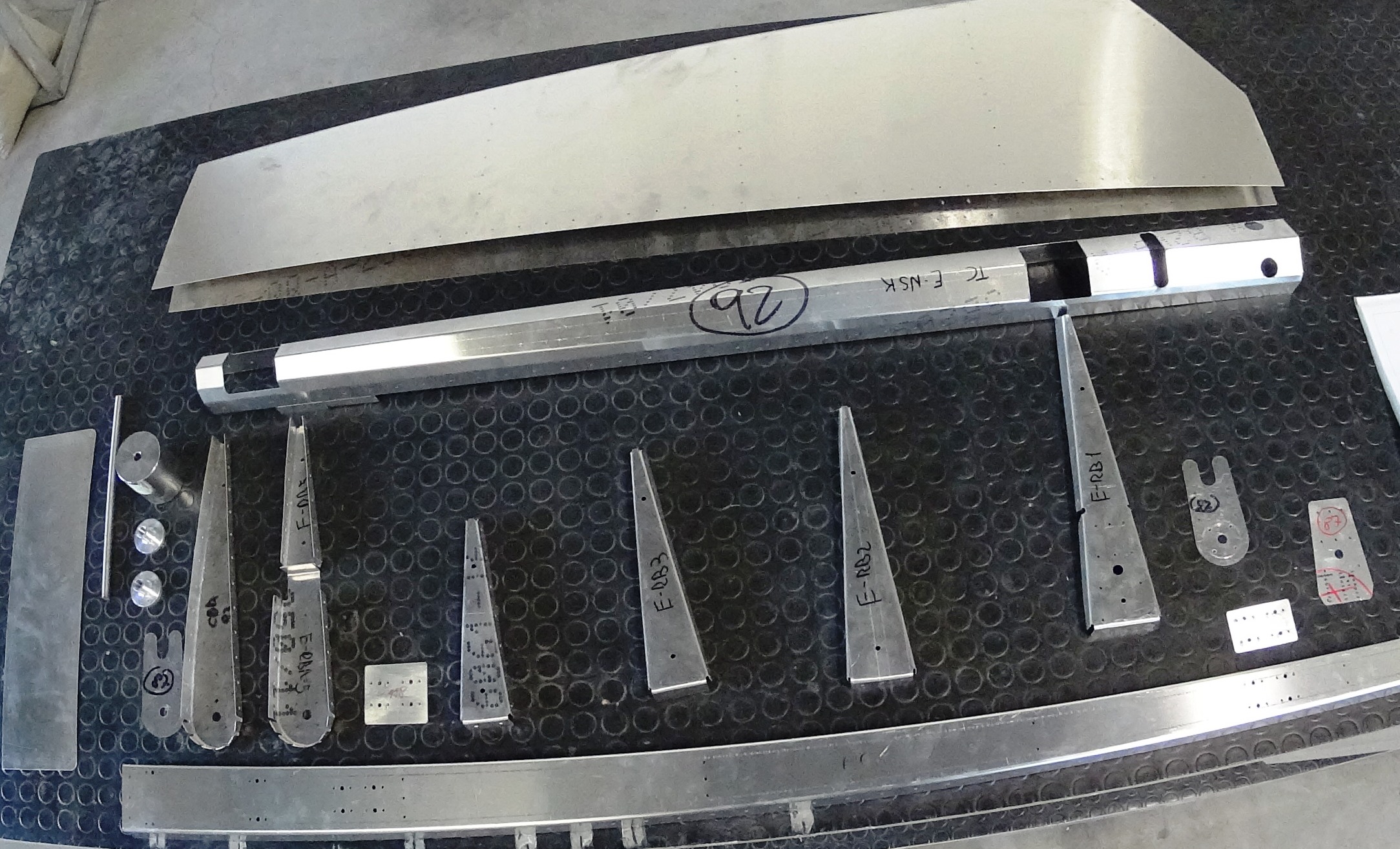

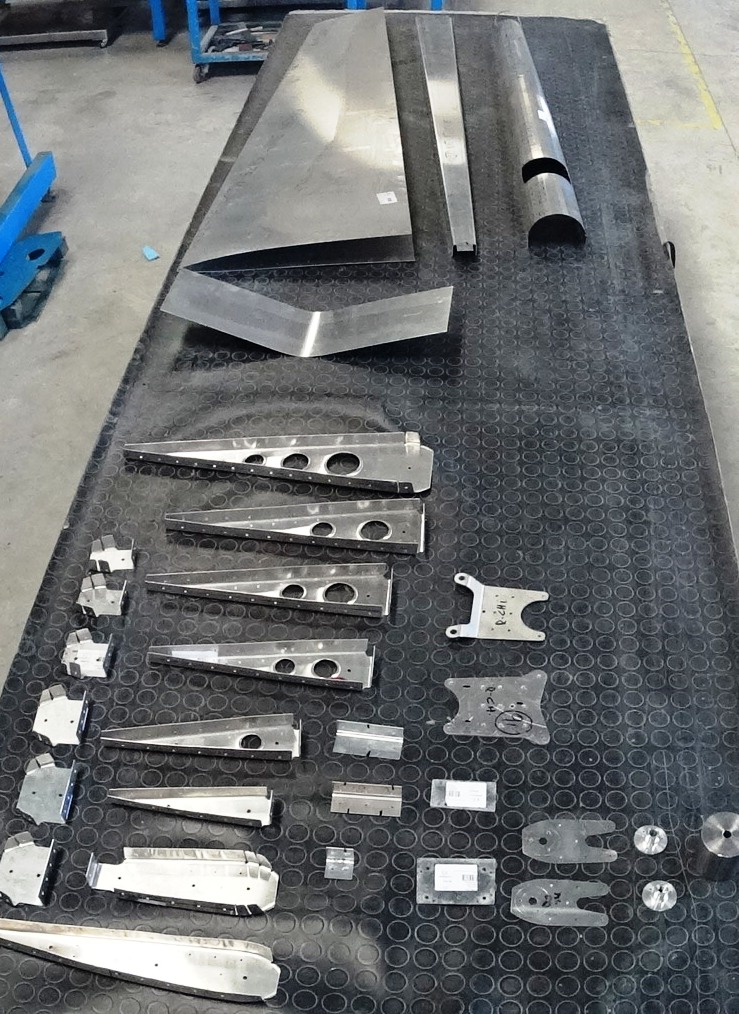

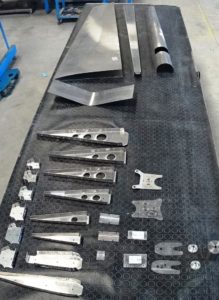

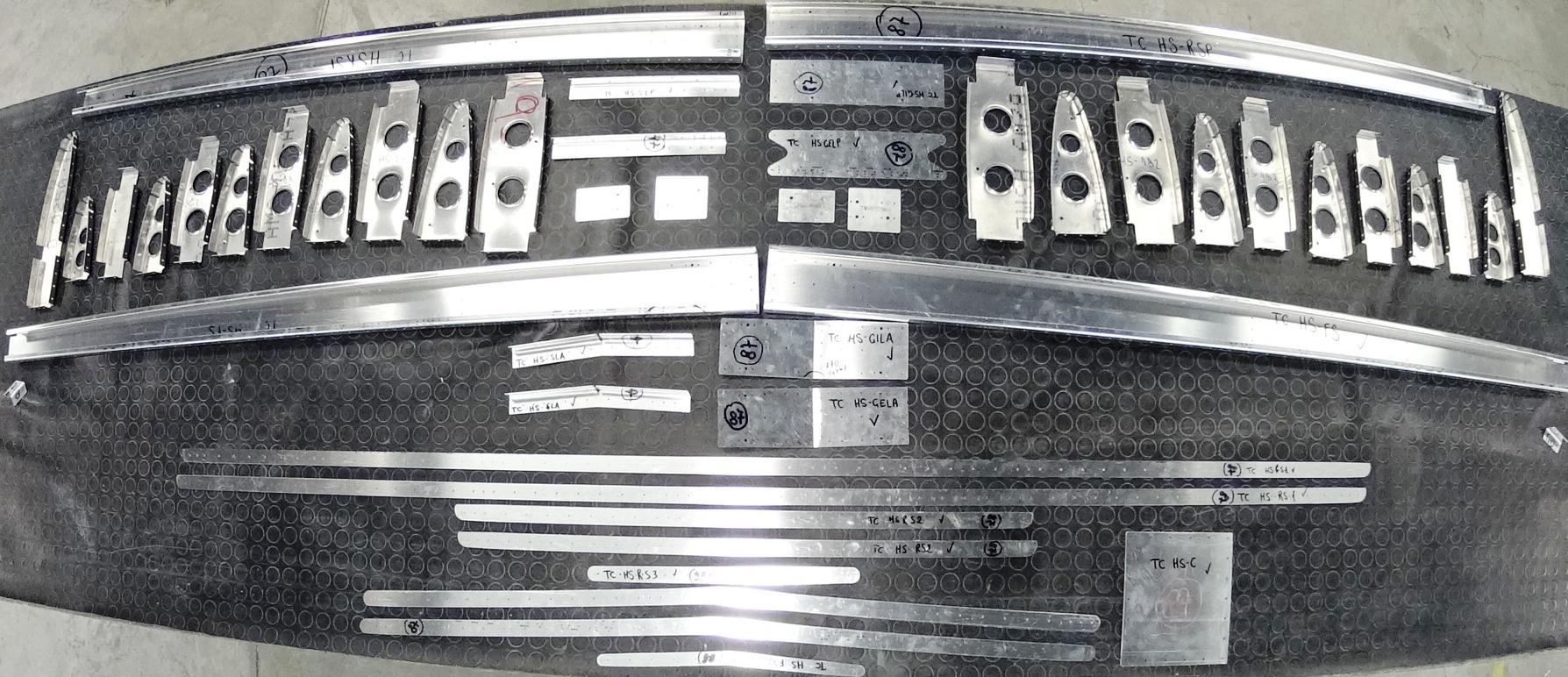

Basic Empennage

  • Empennage provided pre-pounched with guide holes. The builder has to drill the holes to the final size.
  • Hinge parts included
  • All nuts, platenuts, washer, bolts, screws, rivets, pop-rivets, tube fittings needed are included.

FINISHING

The Finishing kit includes all the parts necessary to complete your aircraft with very low price:

  • The pedals, engine mount and all the other elements in chrome molybdenum already welded and treated with powder paint by FL.
  • Canopy kit included
  • Unassembled flight control, front panel, throttle system, front pilot toe brakes, standard fiberglass, fuel system with valve , standard weels, all brake lines, cowling, standard spin, electric flap actuator are included
  • All nuts, platenuts, washer, bolts, screws, rivets, pop-rivets, tube fittings needed are included

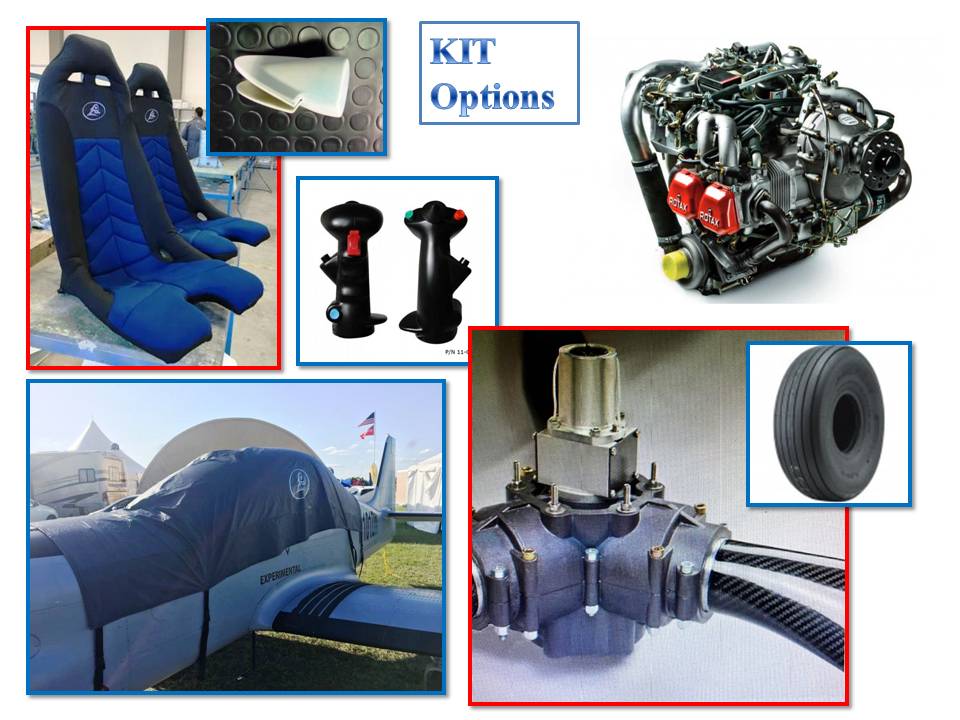

If you would like to add additional options, please check the button below.
