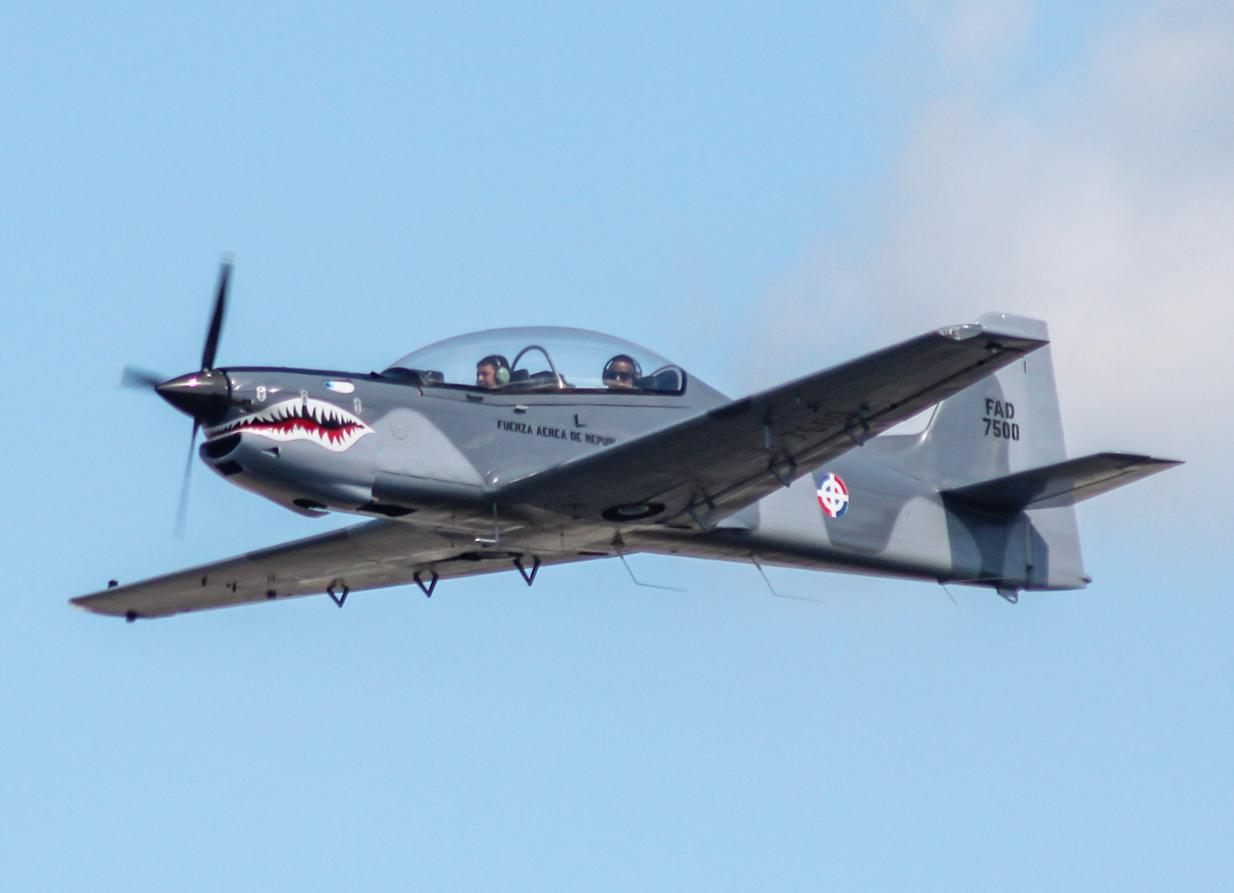

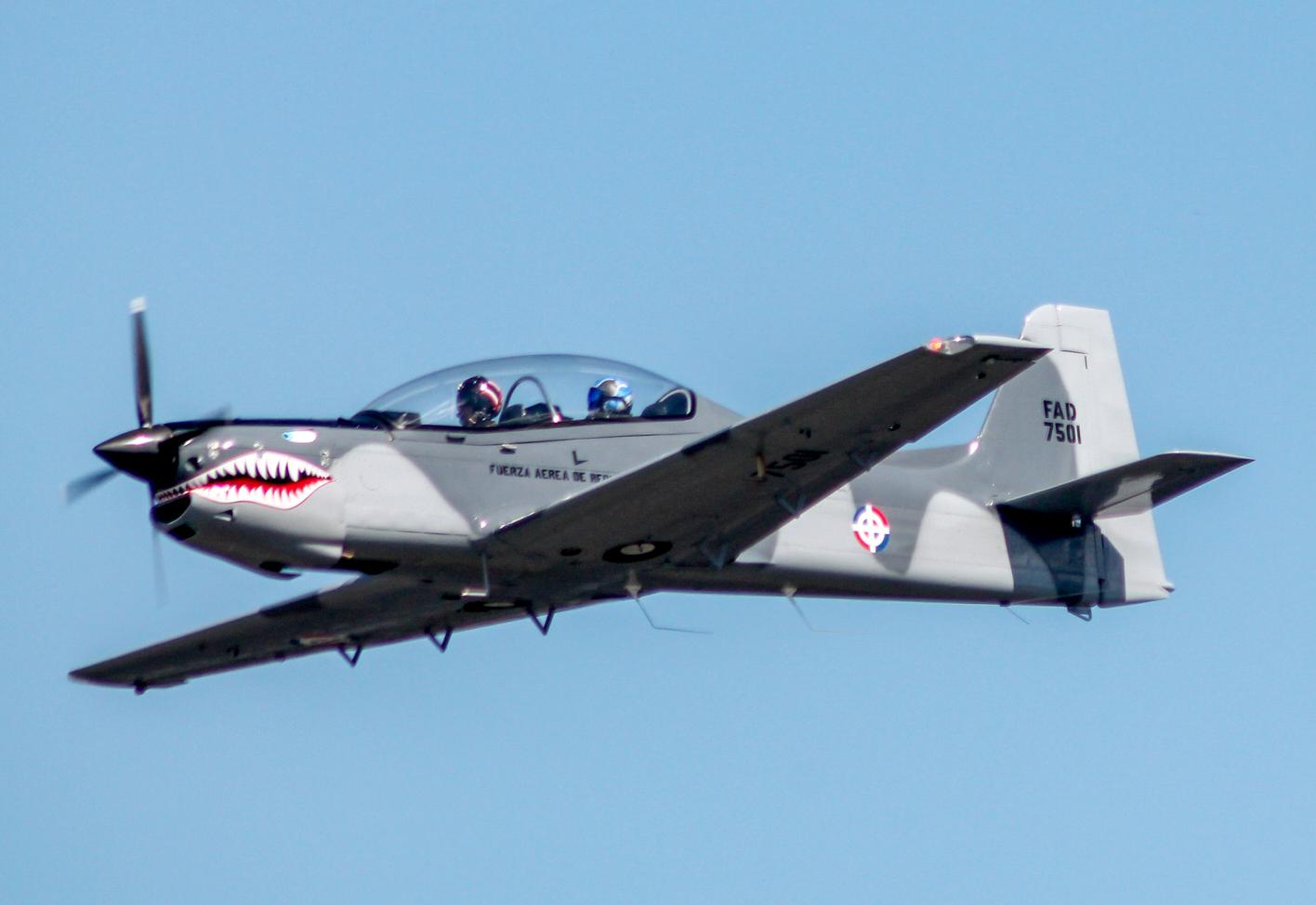

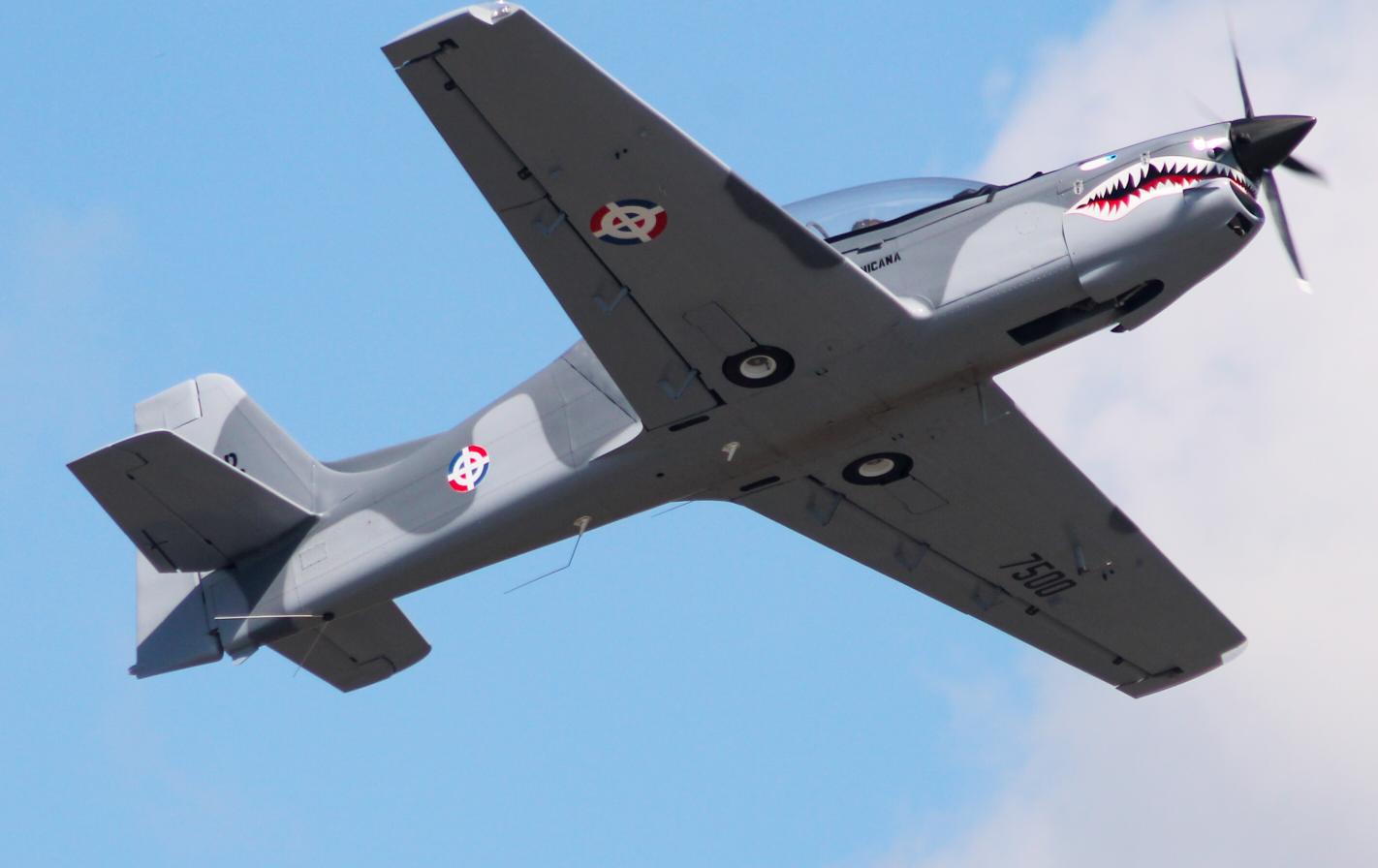

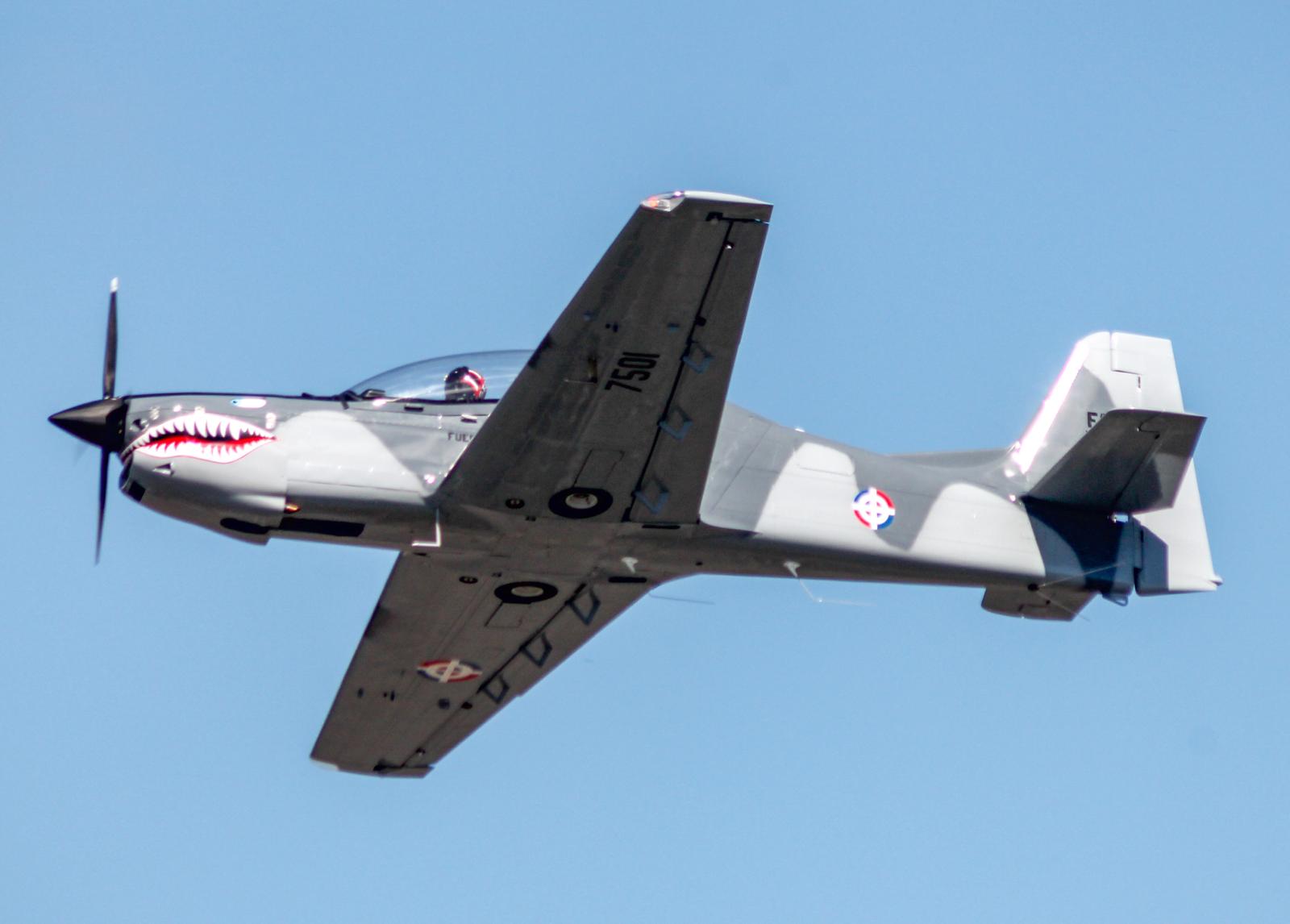

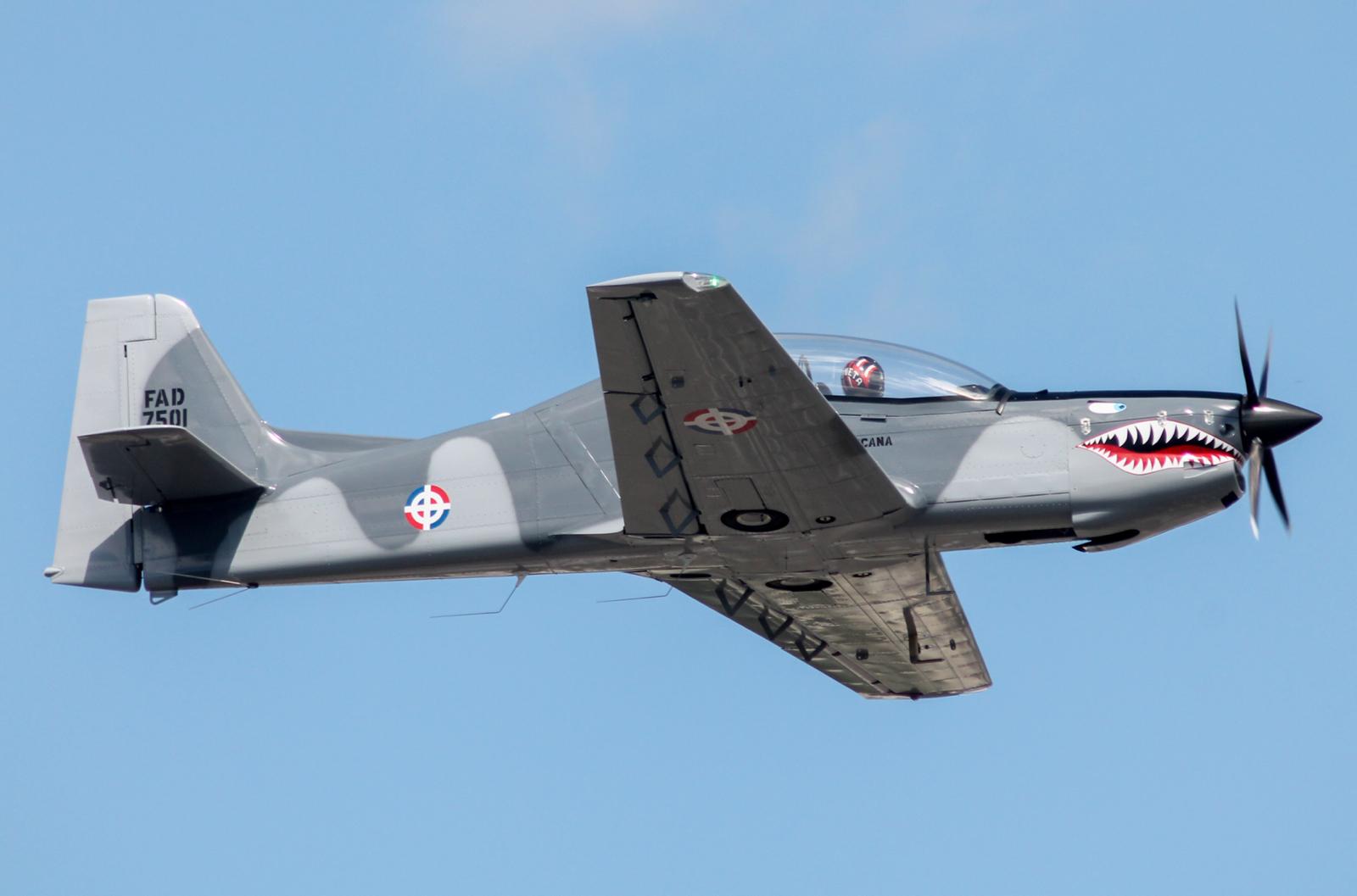

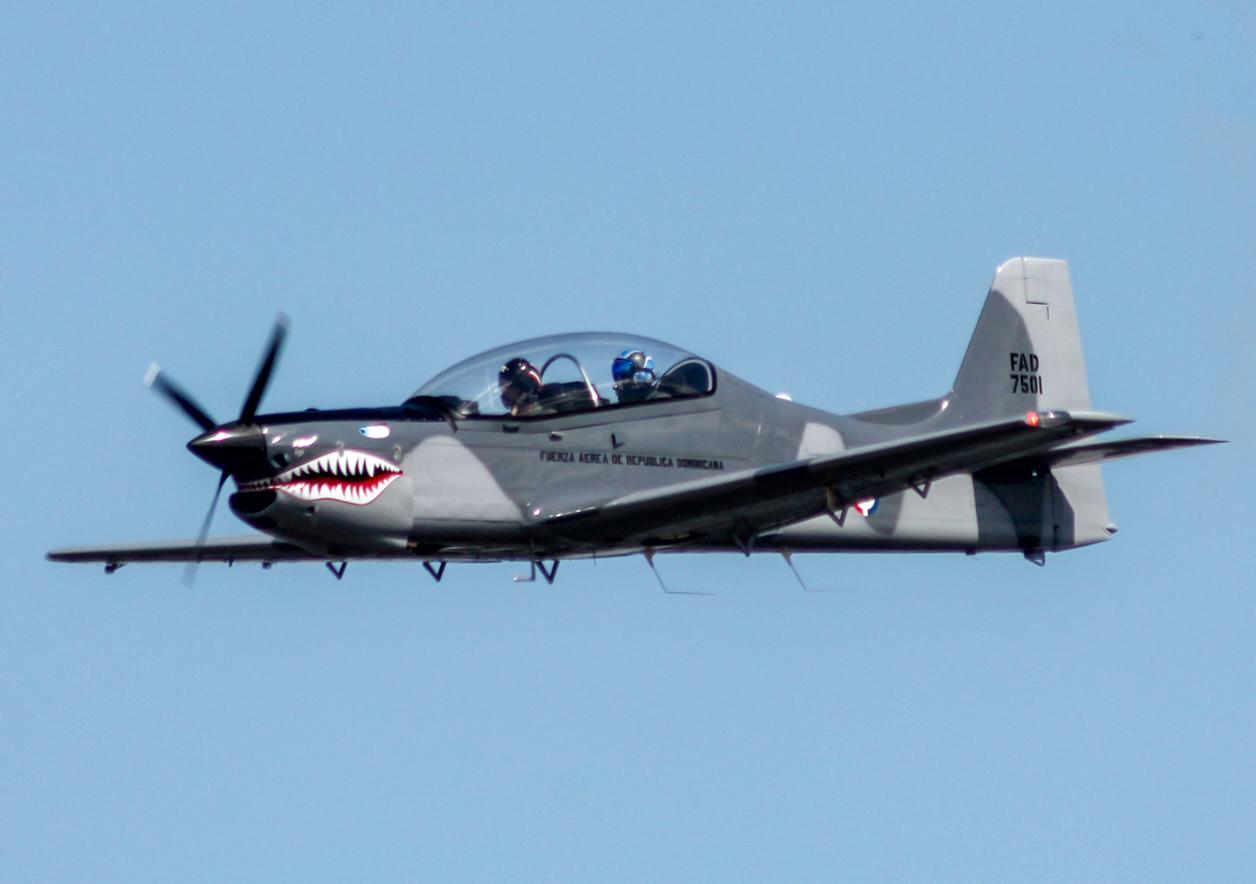

Introduction of the Basic Tandem Trainer Flying Legend Military Version “TP-150” Trainer and Patrol

Flying Legend TP-150 was designed with the aim of obtaining a basic military trainer with low maintenance costs.
Entirely made in aluminium and with a strong landing gear the airframe is perfect to train new pilots either on grass or asphalt runways. Thanks to the load factor +6/-3Gs the aircatft performs basic aerobatic maneuvers and formation flying being a great advanced trainer.
The 150hp injection engine allows high cealing and reduced consumption for long-range missions.
Ballistic parachute, additional underwing tanks and surveillance system can be added as an optional to the trainer.
The ergonomics of the cockpit allows a good view for the instructor sitting behind and the back seat is also slightly higher than the front one allowing an easy control of the student pilot.

Flying Legend was established in 2010 thanks of two entrepreneurs who decided to invest in a dream: building aluminum aircraft. Aircrafts which should not be anything similar of what was already in the civilian aviation market , but unique for military training use, therefore inspired by the Brazilian military warbird the Tucano-R was born! Just a tiny more little, but with the same impact of the original one! The Tucano R used for civilian market is currently in use in several countries around the world, the experience gained with our customers has led to the development of the definitive version for Military Basic “Training, the TP-150 Trainer and Patrol in the fixed and retractable landing gear versions.

The airframe of the plane allows basic aerobatics manouvers , such as: Spin – Loops – Aileron rolls – Barrel rolls – Cuban 8 – Hammerhead

Aircraft performance are suitable for new pilots and stalls manouvres performed in absolute safe conditions.

The aircraft can be used as border controller, for video surveillance and for cross country flights maintaining an affordable costs and economic service and maintenance.

Flying Legend is wordwilde present with several planes that has enabled us to try the plane in different weather conditions optimizing the machine structure and performance.

In addition to the Italian headquarters, the company has an office in Texas and a new production site in Vietnam

The airplane is entirely built in aluminium 2024T3 and 6061T6, protected with epoxy primer to garantee the protection of the structure and is lifecycle. The aircraft has a maximum take off weight (MTOW) of 750kg (1653lb) and a load factor of +6/-3 Gs or MTOW of 820 kg (1800lb)with a load factor of +4. /-2Gs, with a security factor of 1.5

The “TP-150” is offered Like Experimental Aircraft in two versions:

  • –  The first one, suitable for initiali training, has a fixed gear and propeller can be fixed or VPP.
  • –  The second one, ideal for deeper training , has a retractable gear and a variable pitch propeller.

Both planes can be used for basic acrobatic manouvres and are capable to entry and exit a spin.

“TP-150” – Fixed Gear Version (TP-150 Fg)

This version is higly reccomended as basic trainer and can be supplied with a fixed pitch propeller and basic double instrument panels for first and second pilot including Dynon EFIS, analogical instruments, radio, transponder and ELT, Autopilot (2 axes Servos) and can be equipped with IFR Avionics System.

Aircraft Dimension
Aircraft lenght23.30 ft (7.10 mt)
Wing Span32.90 ft(sq) (10 Mtq)
Cabin height3,12 ft (0.95mt)
Cabin Width2.36 ft (0.73mt)
Maximum seating Capacity2
Fuel Tank Capacity2 x 15 US Gal (2x57lt)
Design Weight & Loading
Maximum take off Weight1653 lb (kg750) with a load factor +6/-3G
Maximum take off Weight1800 lb (kg820) with a load factor +4/-2G
Empty Weight920-1050 lb*(417 -475kg*)
Baggage Allowance (1Pilot)154 lb (70kg)
Baggage Allowance (2Pilots)75 lb (34kg)

Power Plant & Performance (1650lb – 750kg)

Power UnitRate of ClimbMax cruise speedStallAverage consumptionRangeVNE
Rotax 914 (114 hp)900 ft/min (up to 8000 ft)135 kts (TAS) (alt. 6000 ft)45 Kts (land. conf.)6.5 gal/h610 NM178 KTS
Rotax 915is (150hp)1400 ft/min (up to 10000 ft)155 kts (TAS) (alt. 5000 ft)50 Kts (land. conf.)7.5 gal/h610 NM178 KTS

“TP-150” – Rectractable Gear Version (TP-150 Rg)

This versions is higly reccomended to complete the training and is supplied with variable pitch propeller and basic double instrument panels for first and second pilot including Dynon EFIS, analogical instruments, radio, transponder and ELT, This version is higly reccomended as basic trainer and can be supplied with a fixed pitch propeller and basic double instrument panels for first and second pilot including Dynon EFIS, analogical instruments, radio, transponder and ELT, Autopilot (2 axes Servos) and can be equipped with IFR Avionics System.

Aircraft Dimension
Aircraft lenght23.30 ft (7.10 mt)
Wing Span32.90 ft(sq) (10 Mtq)
Cabin height3,12 ft (0.95mt)
Cabin Width2.36 ft (0.73mt)
Maximum seating Capacity2
Fuel Tank Capacity2 x 15 US Gal (2x57lt)
Auxiliary fuel tank2 x 7 US GAl (2x26lt)
Design Weight & Loading
Maximum take off Weight1653 lb (kg750) with a load factor +6/-3G
Maximum take off Weight1800 lb (kg820) with a load factor +4/-2G
Empty Weight950-1050 lb*(430 -475kg*)
Baggage Allowance (1Pilot)154 lb (70kg)
Baggage Allowance (2Pilots)75 lb (34kg)

Power Plant & Performance (1650lb – 750kg) +6/-3Gs

Power UnitRate of ClimbMax cruise speedStallAverage consumptionRangeVNE
Rotax 915is
(150hp)
1300 ft/min
(up to 10000 ft)
160 (TAS)
(alt. 9000 ft)
50 Kts
(land. conf.)
7.5 gal/h610 NM178 KTS

Both versions have the possibility to install a ballistic parachute (19kg – 42lb)
As an option, we can provide the aircrafts with additional under-wing tanks (52 lt total – 14 Gal) and surveillance system

Equipment included in every plane: Clear canopy – Gear switch, Trim, Flap and 12V Plug, front and back seat, landing light, Nav light, Beacon light, ELT;

Avionics: the instrument panel and avionics configuration can be customized

Instrument 1st pilot:

DYNON skyviewHDX1100 fully- EFIS with fly information, GPS, engine info.
COM Radio + intercom
MODE “S” Transponder Modo “S” + ADS-B in/out
Heated pitot tube + AOA (angle of Attack) – OAT Probe (Density Altitude, TAS, Wind Computation)

Analogic instruments (ASI – Altimeter- compass – Slip/skid indicator) – 2 axis Autopilot system

Instrument 2nd pilot:

DYNON sky view HDX 800 – manual break – gear switch (aux)

(IFR Configuration):

AVIDYNE IFD 440 (or equivalent) – Certified IFR / GPS with WAAS capability + NAV/COM radio Antena adicional de Comunicacion, GPS antenna, VOR/LOC antenna, glide slope antenna and Arinc- 429 IFR integraded- Garmin G5 (or equivalent): EFIS indipendend “stand-by EFIS- doble comm radio – audio panel – Doble modulo ADAHRS – Doble EFIS extra back up battery – analog VSI indicator – Analog sensitive altimeter
