Quick Build Kit

QBK-200/250 hrs

Each kit provided by Flying Legend includes the fuselage kit, the wing kit, the empennage kit, the flight control kit, the fixed landing gear kit, the aluminium tank kit and the canopy kit. Each kit includes also all the hardware parts (bolts, nuts, rivets and so on) required to assembly the aircarft.   A amateur builder requires approximately 200/250 hrs to complete the basic kit.

The standard kit does not include the retractable gear. The retractable gear has to be selected in the option list

Entirely made in Aluminium 2024-T3/6061 -T6, the structure is calculated for a MTOW of 1433 lb and a load factor of +6/-3G. or 1653 lb with a loaf factor of +4.4/-2.2G

The advanced kit is offered with FL building assistance in Archer City – Tx. The team will help you to bring the kit from basic to QBK

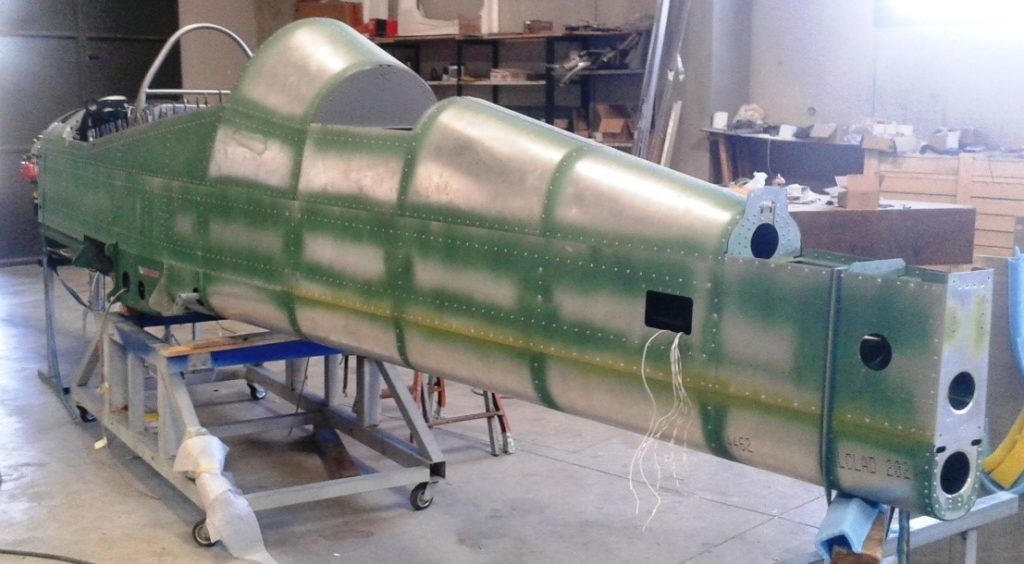

Fuselage kit

– fuselage kit is entirely closed, –

-the floor and the pedals arrangement are done with FL help

-standard pipe fuel system will be inserted with the help of FL team

-assemblage of  controls and the instruments has to be done

-roll –bar,additional baggage compartment, internal upholstery will be completed with FL team

– fuselage is provided with inspection windows which allows the builder a easy access to the internal components.

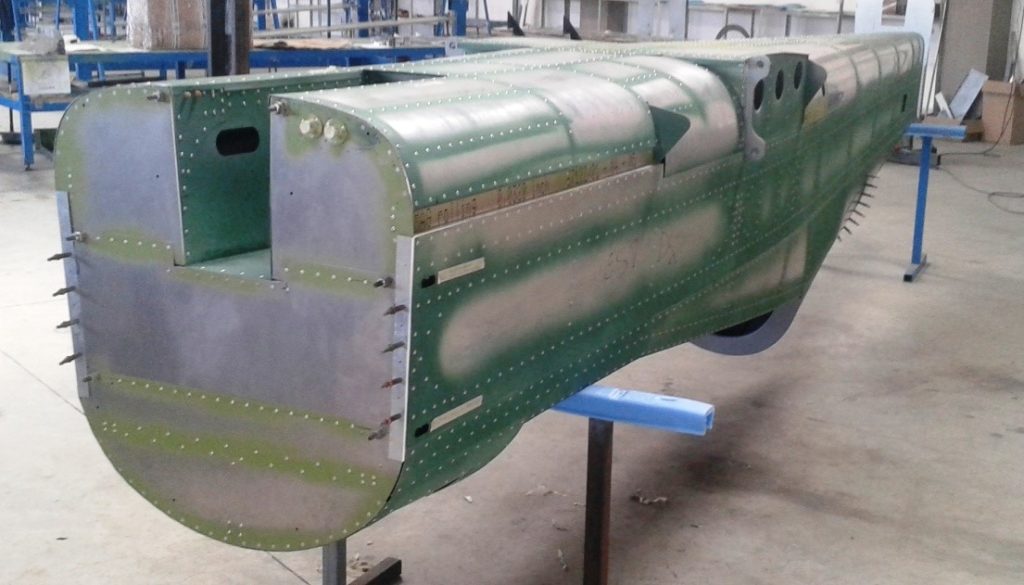

Half Wing kit

-wings, which are tapered, are closed and the tanks are placed inside with the help of FL team

-In case of retractable landing gear option, FL will help you to assembly it

-fuel return pipe, the pitot pipe, the electric cable arrangement, flight control rod, aileron and flap are assembled with FL

-resin tips have to be assembled

-final regulation of the controls and the undercarriage

Our wings are provided with inspection windows too.






Empennage kit

-Hinges, conterbalance and kit trim will be assembled and set to be inserted in the fuselage with the help of FL

-The amateur builder has to assembly the resin tip and supply the trim electric motor.



Flight control

-FL team will help to assembly and cut the control to the final size

-aileron controls are assembled in the wings.

-the remaining controls have to be assembled inside the fuselage.

Fixed Undercarriage

-leaf spring made of aluminium, with 4 supports to fix the structure,

– two 6″ wheels which are working with manual brakes,

– a front undercarriage with a 4″ wheel

ATTENTION: At the time of the order please specify if you would like the fixed or retractable undercarriage option as the fuselage and the wings have to be structured accordingly – also the front undercarriage is suitable for our engine mount.

Tank kit

-n2 glued aluminium tanks (15.5 gal each) complete with accessories and installed in the wing with FL help

Resin Kit

-cockpit cover

-bottom rudder tip

-wing cover

-stabilizer cover

-dorsal fin

Tip Resin

-Resin Tip kit

-elevator tip

-stabilizer tip

-fin tip,

-rudder tip

-half wing tips

Canopy kit

– clear bubble canopy (grey and blu available with an additional cost of 300 Us dollards)

-frame

The canopy  is manufactured on a tailor made stamp, designed from FL.

It provides a great visibility either from the front and the rear seat.

Fuel system kit

-Fuel sensor



The items/service below are NOT included in the standard kit offer but you can add them as an option



-Wheel Fairing Kit

-Toe brakes on pedals

-Parking break



-Retractable gear kit

-main and nose powder coated landing gear

-mechanics

-bushings

-hydraulic cylinders

-hydraulic power pack (12V)

-switches and electric components

-wheels with hydraulic brakes

-emergency manual pump to release the gear in case of failure

-hose and fittings





-Explode Safe Bladder Tanks

– n.2 bladder tanks (total capacity 25 gallons) complete with accessories to place them in the wings,

-caps (NEWTON),

-resin or aluminum covers



-Upper and Lower Cowl kit

Clear Wing tips

Canopy assemblage





-Engine Mount kit

It is suitable for Rotax Engine, either 912 and 914.

It can be also used for the experimental engine of 140 hp.



Rotax Ring

If you are going to purchase the Rotax 914 please do not include it as it is already provided by Rotax.



Engine mount isolator (4 units)





Standard seat

made of resin, not fabric covered

Structural seat

The structural seats allow the belts to be installed on the seats directly and not on the aircraft structure.

They are not fabric covered resin seats  with aluminum structure.

This seat is 2,36 inch higher, therefore has to be evaluated for pilots taller than 5,9ft

Standard seats with fabric cover and FL logo

Rear brake  (only manual)

Electric trim

Throttle system

Rear instrument panel

Instrument panel is provided plain as we do not know which instruments the customer would like to add.

However if the customer already knows which instruments he would like, we can laser cut the holes.





Step in rod

Faux Exhaust Ducts

Spinner and backing plate

Engine Accesory Kit

It includes

-fuel line Rotax engine with supercharger (it does not include the 2 electric fuel pump)

-oil tank supports

-radiator supports (it does not include the radiator)

-water hose supports

The image below will show you the items supplied and their installation
